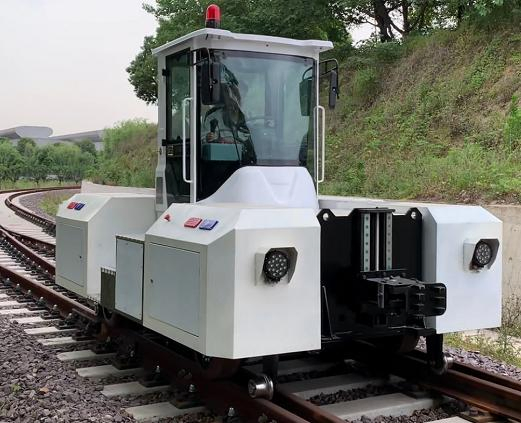

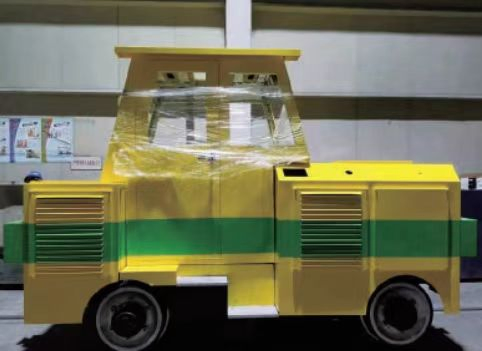

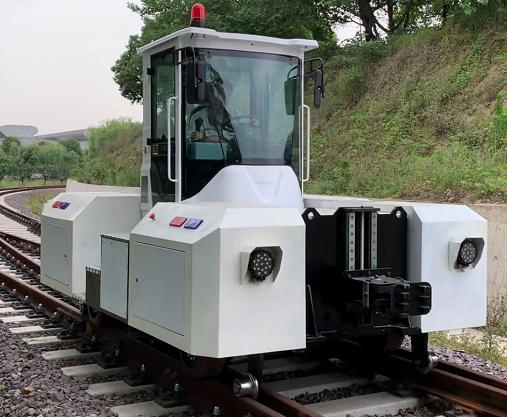

Electric Drive Road and Rail Shunter Vehicle Qy-B (300T)

Overview Detailed Photos Our Advantages Company Profile Cooperation case display Certifications FAQ Overview Basic Info. Model NO. QY-B(300T) Transmission Type Automatic Power Electric Energy Load Capacity ＞50t Emission Standard Zero Emission Seats ≤5 Horsepower ＞450hp Engine Capacity ＞8L Condition New Traction Speed 0-5km/H Positioning Accuracy ≤10mm Drive Mode Four-Wheel Independent Drive Hook Height 660-1020mm Transport Package Shipping Specification 9-10t Trademark CRRC Origin China HS Code 86012000 Production Capacity 200/Year Packaging & Delivery Package Size 150.00cm * 120.00cm * 40.00cm Package Gross Weight 800.000kg Product Description Electric Drive Road and Rail Tractor Qy-B (300T) type QY-A(200T),QY-B(300T),QY-C(500T),QY-B multifunctional type Traction speed 0-5km/h Drive mode Four-wheel independent drive Operation mode Road Universal Driving,Bi-directional railroad traction Power supply type Lead-acid batteries Control method Remote control operation,,driving operation Hook height 660-1020mm Item Name Technical Parameter 1 Type QY-500T-ZG 2 Traction tonnage Rated 500t, peak 750t 3 Drive Four independent drive units, each of 80V/10kW 4 Weight 9-10t 5 Turnout universality Available through all types of common turnout 6 Maximum gradient of operation Track traction gradient 1.5‰(unsuitable for startup on slope)Highway operation gradient 15% 7 Minimum curve radius (Railway) Pass through 25m for single unit Pass through 110m for traction work 8 Minimum Curve radius (Road) 1.7m 9 Braking distance Full load minimum braking distance ≤ 5mNo-load minimum braking distance≤ 1 m 10 Running mode Four-wheel independent steering enables drive in all directions 11 Control mode Wireless control 12 Gauge 1067mm/1435mm(customized) 13 Remote distance 400m 14 Size including coupler length×width×height: 5mx2.3mx2.6m 15 Waterproof grade for key point IP54 16 Charging voltage 380 V 17 Charge time 8h or above 18 Rated operation time 8h 19 Working noise ≤60dB 20 Positional accuracy ≤10mm 21 Coupler Replaceable 22 Coupler height Adjustable range 660~970 mm 23 Brake Electromagnetic control brake 24 Console display screen Vehicle status display, battery power display, fault alarm, operation instructions display information 25 seat Leather ergonomic seat, 4 direction adjustable (front, back, up or down) 26 cab Enclosed cab 27 Speed Two Tier, Stepless speed regulation, 0-5 km/h(load), 0-10 km/h(no-load). 28 Track traction cars quantity 6 cars fully loaded on straight track;30 cars with no load on straight track;10 cars with no load on curved track with track slope gradient ≤1%. Detailed Photos Our Advantages We have world-class manufacturing equipment, processes like casting, forging,welding, heat treatment, machining, gearing, can all be done in house. CRRC QSYRI engages in the research of casting processes and material technologies, along with the development and manufacture of various castings, including cast steel, cast iron, nonferrous metals, high-temperature alloys, stainless steel and cobalt-base alloys, of which high-phosphorous brake shoe, Grade B steel, Grade B+ steel, Grade C steel and Grade E steel, and their manufacturing technologies have been popularized successfully in railway industry.Low-pressure casting Centrifugal casting Metal mold casting Green sand casting Resin sand casting Pre-coated sand casting Sodium silicate sand casting Precision investment casting Bimetal liner preparation MAGMA software for solidification simulation Cast steel, cast iron, aluminum alloy and magnesium alloy development. The company is also engaged in the R&D of precision forging, heat treatment and product. Its forgings for large-capacity dampers, ND5 major-minor connecting rods, axle of 2000mm, brake disc and gear have been used widely in railway industry. Its forgings of high temperature alloy turbine blade has been used for gas turbine in war ships. Its valve body forgings have been used for petroleum industry. The company owns an internationally advanced electric screw press with a maximum pressure of 22,000 t.Forging CAD/CAE Controlled atmosphere heat treatment Precision forging of nonferrous,ferrous metals, stainless steel, high temperature alloy, titanium alloy The company involves in the R& D of various heat treatment processes and quenching mediums, including cemented quenching, carbon-nitriding, induction quenching and tufftriding. The company operates internationally advanced pit-type and box-type carburizing furnace production lines, as well as quenching press and induction quenching machine production lines introduced from Germany, and keeps ahead in the country in terms of gear heat treatment technology.Controlled atmosphere carburizationSalt bath tuffnitriding Fast and deep ion nitriding Medium & high-frequency quenching and equipment design Heat treatment deformation control. The company is devoted to the R&D of welding processes and equipment for stainless steel, aluminum alloy and alloy steel. The company is equipped with advanced welding and cutting equipment including longitudinal sheet welding machines, NC air plasma cutters, Miller aluminum alloy welding machines, LVD NC sheet shearing and bending machines, large-sized vacuum brazing furnace, and has developed and manufactured aluminum air reservoirs, water tank, battery box, water-cooled radiators. The company is also dedicated to the R & D of surface repairing and hardening technologies for large-sized components with flame-spraying, plasma spraying and electrobrush-plating techniques. Its Miller plasma spraying system can produce transferred coatings of metals, alloys and ceramics. Flame spraying, arc spraying, plasma spraying, and the equipment Electroplating, chemical plating and electro brush platingChemical surface treatment includinganodizing, chemical oxidizing, passivating,phosphating and coloring Company Profile CRRC Qishuyan Institute Co.,Ltd is a state-own company affiliated with CRRC group. Found in 1959, it locates in Changzhou city in the great Shanghai region.Focus on R&D of critical equipment for China railway industry, it is a specialized research institution for new material and processes for locomotive and rolling stocks, as well as a high-tech manufacturer of critical parts and components for railway transportation.Currently, it has about 3,000 employees working in 6 production sites, its revenue exceeded 700 million USD in 2020. Rail transit equipment, automobiles and new energy vehicles, ships and marine engineering equipment, aerospace vehicles, energy-saving and environmental protection equipment, wind power generation equipment, mining machinery, robot parts, construction machinery, mechanical and electrical equipment, transmission devices, instrumentation, electronic appliances, plastics R&D, design, manufacture, sales, repair, leasing, and technical services of products, metal products and parts; Mold manufacturing, sales, repair, and technical services; Metal casting, forging, and welding; Surface treatment and heat treatment; Orbital welding Engineering construction; Product testing and testing; Professional technical and operational skills training (excluding vocational certificate training recognized by the state), technical and management consulting, conference services; Rental of self-owned houses and equipment; Self-operated and agency of various commodities and technology import and export business (except for goods and technologies that are restricted by the state or prohibited from import and export); Design and produce print advertisements, and use the company's public publications to publish domestic advertisements. Cooperation case display Certifications FAQ 1. How long is the product warranty period? A: Two years.2, how to place an order to our company? A: After the products you need are confirmed by both parties, our company will sign a contract with you, and we will execute the delivery and other related matters according to the contract terms.3. How to distribute the product? A: We generally provide FOB prices, and the freight is borne by the buyer. If the buyer has the demand, we can also provide CIF price, our company is responsible for shipping products.4. Settlement currency? A: We can settle in RMB, USD and Euro.5. Return policy? A: In case of any problem with the product, the two parties shall negotiate a return or exchange according to the terms and conditions of the contract.6. After-sales problems? A: If there is a quality problem during the warranty period, our company will answer it to the customer within 24 hours. If the problem is more serious, our company will arrive at the customer site within a week to answer it. Products beyond the warranty period we provide maintenance services, provide paid replacement parts, provide paid customer on-site service. 7, how to buy the fragile and consumable parts in the product? A: Our company will make a list of vulnerable and consumable parts and provide channels for purchase. Performance Parameters
