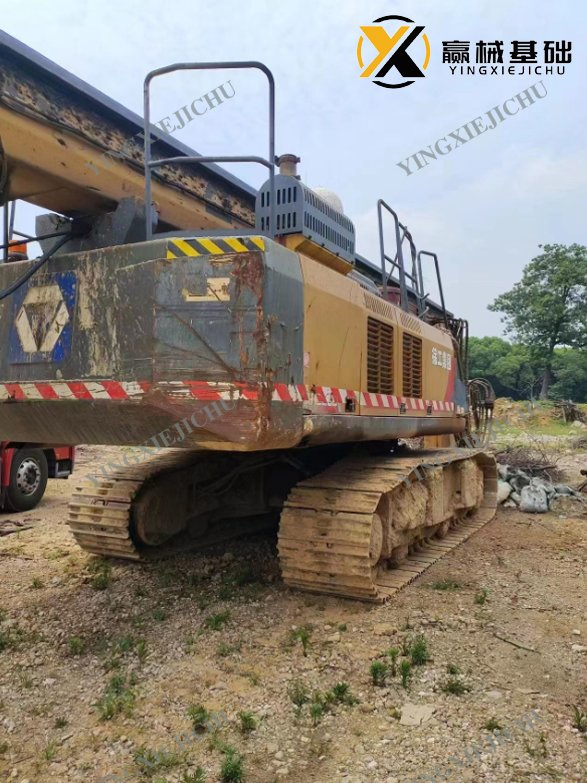

High Quality Rock Drill Rig Mining Core Machine Perfuratriz/Piling Machinery /Rotary Drilling Rig/Pilote

Overview Company Profile Certifications FAQ Packaging & Shipping Overview Basic Info. Model NO. SR400E Certification ISO 9001:2008 Condition Used Drill Hole Diameter >300mm Drill Hole Depth 100-150m Bit Type Diamond Bit Drilling Way Rotary Type Crawler Weight 118t Drilling Diameter 2800mm Drilling Depth 103m Working Hours 5000 Hours-10000hours Transport Package Roll on Specification overall height: 18, 592 mm Trademark XR Origin Beijing HS Code 8401309000 Production Capacity 2 Packaging & Delivery Package Size 1458.00cm * 300.00cm * 400.00cm Package Gross Weight 51000.000kg Product Description Main Technical Specification Type Unit Parameter Max.diling diameter m φ2.8/φ2.5* /Kaly bar contiguration(cdillng depth m JS530-4×17.0/61(Standard) JS530-4×19.0/69(Optional) MZ530-5×19.0/87(Optional) JS575-4×17.0/60(Optional ) MZ530-6×19.0/103(special) Engine Modal / QSX15-C500 Power kW 373 Rotary drve Max.output torque kN·m 400 Rotary speec r/min 7-25 Cowd cfnte Max.pul-down piston pust kN 300 Max.pul-down piston pul kN 400 Mex.pull-down piston stroke m 6 Crowd winch Max.oull-down piston pust kN 400 Max.pull-down piston pul kN 400 Max.pul-down plston stroke m 18 Main winch Max puling force kN 370 Max.speed m/min 60 Auxdiary winct Max.puling force kN 100 Max.speed m/min 65 Mast ncinator //Lateralforwards/backwards ±5/4/15 Undercarrige Max.treveling speed km/h 1.3 Max.grade abiity % 35 Min.clearance mm 450 Treck shoe widtt mm 800 Distence between tracks mm 3500-4900 Hdalesgte Working pressure MPa 32 Overall weighi 118 Dmension Woking conditior mm 10995×4900×26640 Transportation condition mm 20755×3500×3910 Technical Characteristics It adopts double-boom luffer and H-style.Dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience; electric control turbo-supercharged with three gears engine is used,it has strong power.According to specific working conditions,the users can select a corresponding gear of the engine,getting the drilling rig working as three engines. The main hydraulic system adopts the negative flow control,and adopts the main power control and limit power control together which can increase the system efficiency and make the most of the engine power.It adopt three-in-one cooling system which is tightly packed and has a high-efficiency in cooling. It adopts the single-rope for main winch to figure out the wear of the steel rope,and extend the life-span. The rotary drive can switch from Nromal Mode,Rock Mode and Energy-Saving Mode,the user can select a corresponding mode of the rotary drive according to the specific working conditions,which can greatly improve the working efficiency and lower the fuel consumption. Optional configuration according to customers'requirement,E.g:Crowd winch,Outrigger cylinder,Sleeve-driven and so on. It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability. Performance characteristics "The use of double boom amplitude changing mechanism and rotary drilling rig special H type hydraulic telescopic track chassis, equipped with large diameter slewing support, to ensure the super strong Stability and ease of transport;" "The use of engine, strong power, with three gear power control, users can choose the appropriate gear according to the working conditions, to achieve a rig. Play the effect of three engines, optimize the three-speed power curve, effectively reduce fuel consumption and operating costs;" "The hydraulic system uses load sensing technology, superimposed total power control and limit power control technology to make the hydraulic system more efficient and more efficient Can, the use of three-in-one combined radiator system, compact structure, high heat dissipation efficiency; Xugong's proprietary single-row rope main winding structure effectively solves the problem of rope "biting rope" and greatly prolonging the service life of the rope; The power head has ordinary mode, rock entry mode and energy saving mode, and the user can choose the corresponding mode according to different geological conditions, which improves the construction Efficiency and reduced fuel consumption;" "A variety of configurations: optional lifting pressure, casing drive, etc., good scalability; The standard centralized lubrication system makes maintenance more convenient and improves working reliability." Company Profile Established in 2000 in Xuzhou, Jiangsu, China, Anhui Winnings Infrastructure Engineering Co., LTD is a leading provider of drilling equipment, pile foundation machinery, lifting machinery, earthmoving machinery, drilling machinery, logistics machinery, and concrete machinery. With a focus on quality and customer satisfaction, we offer a wide range of products to meet your construction needs. Certifications FAQ Q1. WHAT ARE THE ADVANTAGES OF YOUR COMPANY?A1. Our team have more than 10 years of work experience in construction machinery and commercial vehicles industries. Relying on our own platform and centralized procurement, to provide customers with multiple categories spare parts with high-quality and competitive. price. And we have several distribution center and overseas parts agent, acting as an integrated service and parts provider.Q2. WHAT PAYMENT TERMS CAN YOU ACCEPT?A2. Usually we can use T/T or L/C terms, sometimes we can also use DP terms.Q3. WHAT INCOTERMS 2010 TERMS CAN YOU USE?A3. We are a professional international company that can handle all INCOTERMS 2010 terms, and we usually use regular terms, such as EXW, FOB, CFR, CIF, CIP, DAP.Q4. WHAT LOGISTICS METHODS CAN YOU USE FOR SHIPMENT?A4. We can transport construction machinery and commercial vehicles by various means of transportation (such as containers,ro-ro/bulk transportation, trucks or trains) for light parts Packaging & Shipping US$107,200.00 1 Piece (MOQ) Hydraulic Pneumatic Drilling Machine Mining Rota
